Twin-Spindle Turning Center

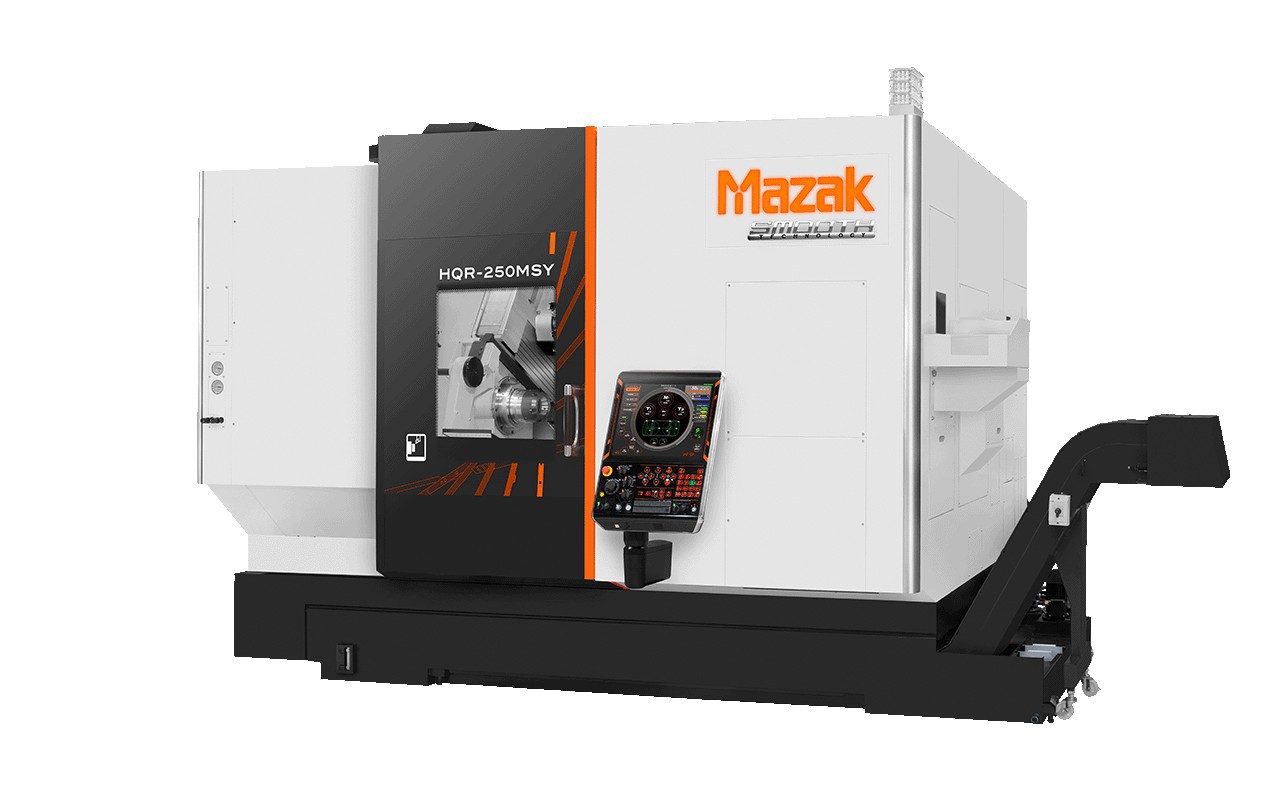

The Mazak HQR series stands as a formidable line of heavy-duty, large-capacity Horizontal Turning Centers engineered for the most demanding chucking applications. The nomenclature "HQR" likely derives from "Horizontal" and aligns with Mazak's premium large turning center series (QR), signifying a machine built for monumental power, rigidity, and precision on massive workpieces. Designed for industries where component size and weight are measured in meters and tons-such as energy (oil & gas valves, turbine components), heavy machinery (gearbox housings, large shafts), marine (propeller shafts), and mining-the HQR is a cornerstone for machining large rotational parts.
The HQR's design is centered around a massive, heavily ribbed slant bed construction, providing an ultra-stable foundation. The slant bed ensures efficient chip fall-away and excellent accessibility. Its defining characteristic is a tremendously powerful and large-diameter main spindle housed in an oversized, rigid headstock. This spindle is designed to deliver immense torque at lower speeds, capable of driving large-diameter cutting tools and handling heavy interrupted cuts on forgings or castings with ease. The spindle bore is substantial, allowing for large through-feed work or the use of big hydraulic chucks.
Tooling is managed by a robust, high-capacity turret. Given the scale of the parts and the required metal removal rates, the turret is designed to hold large, heavy turning tools. While primarily a powerful turning machine, many HQR models are equipped with optional driven tooling (live tooling) and a C-axis on the main spindle, transforming it into a multi-tasking turn-mill center. This allows for milling, drilling, and tapping operations on the face or diameter of the part in the same setup, a critical feature for complex components like large flanges or valve bodies that require bolt hole circles or port patterns.
A fully programmable, tall and sturdy tailstock is essential for supporting the significant weight and length of the workpieces. The machine's guideways, ballscrews, and servo drives are all oversized to maintain positioning accuracy under extreme loads. Thermal stability features are critical in a machine of this size to compensate for heat generated during long machining cycles.

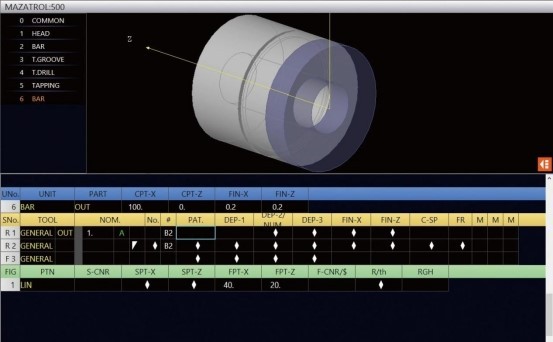

Control is provided by Mazak's advanced MAZATROL SmoothX or Matrix CNC, which is perfectly capable of managing the complex interplay of heavy turning cycles and optional milling operations. The interface allows for efficient programming of these large parts.
The HQR is built for integration into a heavy-component manufacturing workflow. While loading is often done via overhead crane, the machine is designed to interface with large-part handling automation, such as floor-mounted robotic arms or custom gantry systems, to reduce manual labor and cycle times.
In essence, the Mazak HQR is a titan of turning. It fills the critical niche between standard large lathes and even larger vertical turning lathes (VTLs). It offers the horizontal turning orientation ideal for long shaft-type components and provides the raw power, rigidity, and optional multi-tasking capabilities needed to machine the large, high-value forgings and castings that form the backbone of heavy industry.
