High-Speed High-Precision CNC Turning Center

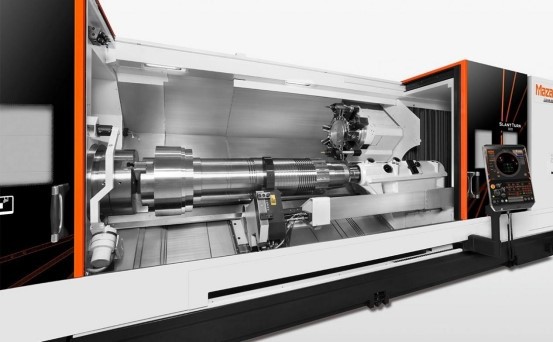

"Mazak SLANT TURN" is not a specific model but rather refers to the foundational design architecture used across Mazak's entire range of CNC turning centers (lathes). It is a hallmark of Mazak's lathe design, distinguishing them from flat-bed lathes. Understanding the "SLANT TURN" concept is key to understanding the advantages of Mazak lathes.

The term describes the inclined or slanted bed configuration upon which the carriage and tool turret move. Typically set at a 30-degree or 45-degree angle, this design offers several critical advantages over traditional flat-bed designs:

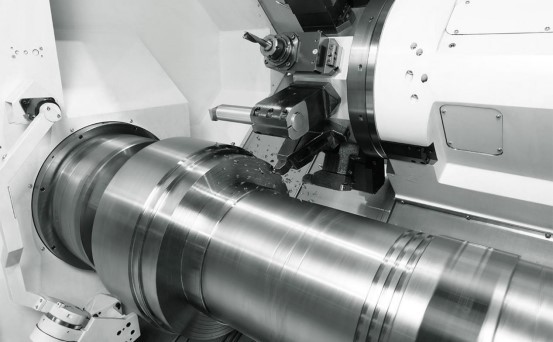

Superior Chip Evacuation: Chips fall directly away from the workpiece and cutting zone by gravity, down the slanted bed and into a chip conveyor. This prevents chip accumulation, which can scratch finished surfaces, interfere with tooling, or cause overheating. It promotes a cleaner work environment and safer operation.

Enhanced Rigidity and Stability: The slanted bed forms a triangular structure with a wider base. This geometric design is inherently more rigid and offers better damping characteristics than a flat bed cantilevered from one side. It provides superior support for the carriage, reducing vibration during heavy cuts and enabling higher accuracy and better surface finish.

Improved Ergonomics and Accessibility: The inclined position brings the working area closer to the operator at a more comfortable viewing and loading height. It also provides clearer visibility of the cutting process and easier access to the chuck, tools, and part for setup and inspection.

Efficient Coolant Return: Coolant naturally drains back to the coolant tank, simplifying the machine's plumbing and maintenance.

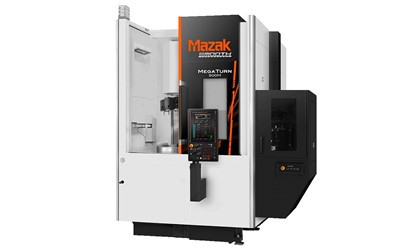

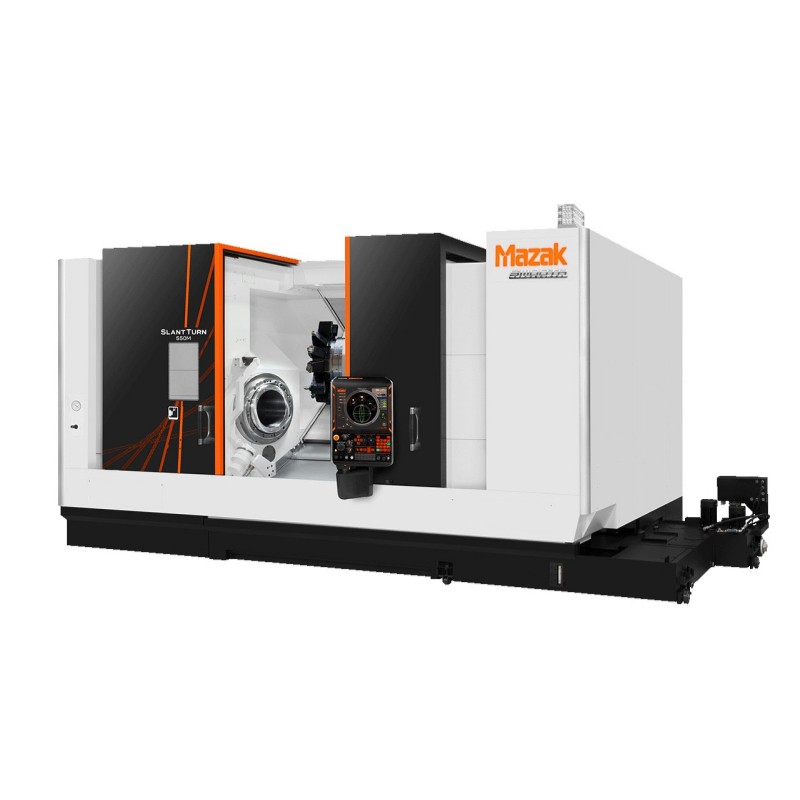

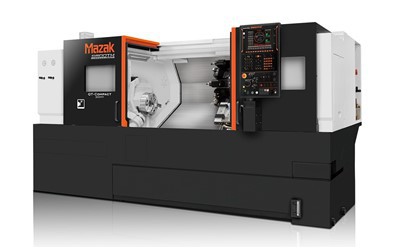

This "SLANT TURN" design philosophy is applied to all of Mazak's turning centers, from the compact Quick Turn (QT) series to the massive Mega Turn (MT) series for giant parts. Whether it's a simple 2-axis lathe, a multi-tasking turn-mill machine with a Y-axis and sub-spindle, or a vertical turning lathe (VTL) which uses the principle in a different orientation, the core benefits of the slanted bed remain consistent.

In essence, "Mazak SLANT TURN" is synonymous with efficient, rigid, and operator-friendly turning. It represents a fundamental design choice that has contributed significantly to the productivity and popularity of Mazak's turning products for decades.
