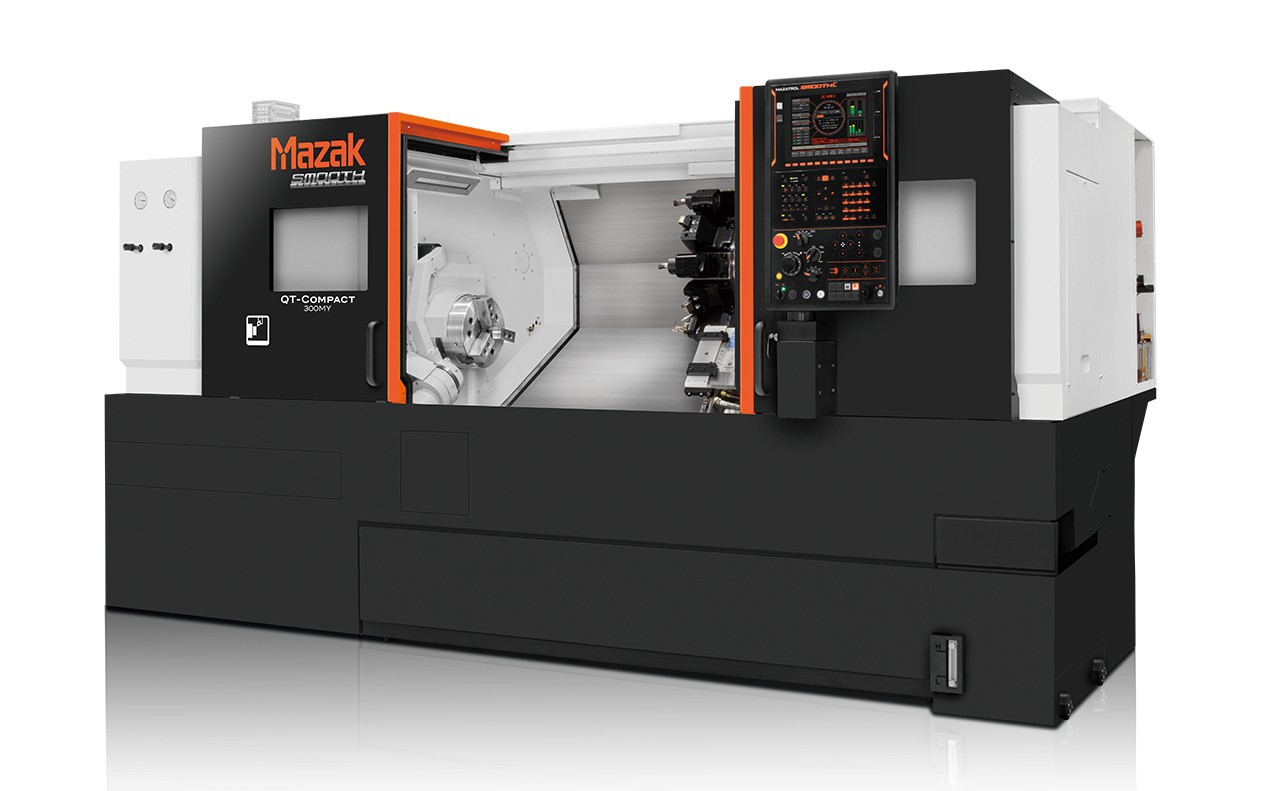

The Mazak QT-C 200MY L is a highly capable and versatile multi-tasking turning center from the Quick Turn (QT) series. The model name decodes as follows: "QT" (Quick Turn), "C" likely denotes a Compact or a specific generation, "200" indicates the maximum turning diameter (in mm, e.g., 200mm over the bed), "M" signifies Multi-tasking/Mill-turn capability, "Y" confirms the presence of a Y-axis on the turret, and "L" designates a Long bed version for extended part lengths. This machine is engineered to complete complex parts in a single setup by combining turning, milling, drilling, and tapping operations.

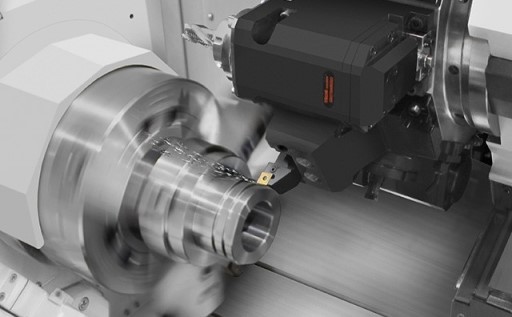

This is a true turn-mill center. Its primary function is that of a powerful 2-axis lathe with a high-torque main spindle. The key differentiator is the driven tooling capability on its turret. The "Y-axis" means the turret can move tools not just in the X and Z directions, but also off-center in the Y-direction (vertically, relative to the lathe's spindle centerline). This allows for off-center milling, drilling, and tapping operations on the face or diameter of a part without requiring a secondary operation on a machining center.

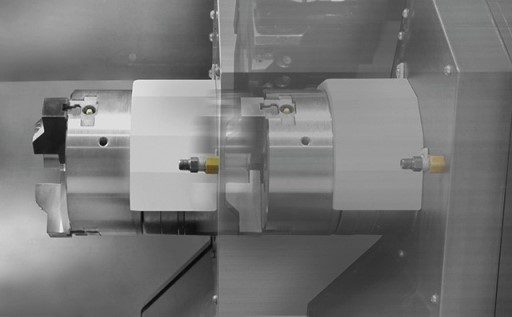

The "M" multi-tasking is further enhanced by the common inclusion of a sub-spindle (or counter spindle). This is a second spindle located opposite the main spindle. After the first side of a part is completed, the sub-spindle can pick the part off the main spindle, allowing the back side to be machined-all in one cycle. This enables complete machining of complex parts like fittings, valve bodies, and transmission components from bar stock or a blank in one continuous, automated operation.

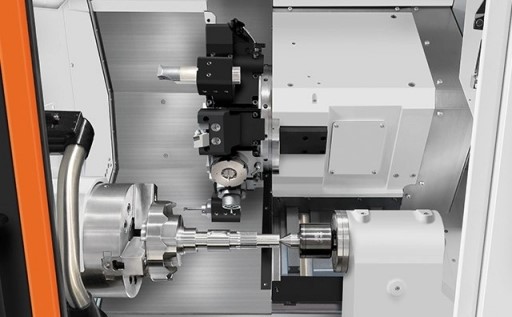

The "L" bed provides the necessary Z-axis travel to accommodate longer shaft-type parts between the main and sub-spindle. The machine is controlled by Mazak's advanced MAZATROL SmoothX or Matrix CNC, which seamlessly integrates turning and milling cycles, including synchronized spindle (C-axis) control for contour milling.

Built for high-productivity, it features a bar feeder interface and is designed for lights-out operation. By completing parts in one chucking, it eliminates cumulative errors, reduces work-in-process, and dramatically slashes total production time.

In summary, the Mazak QT-C 200MY L is a compact yet powerful multi-tasking powerhouse. It perfectly embodies the "Done-In-One" manufacturing philosophy. For shops producing complex rotational parts that require secondary features, it offers an incredibly efficient solution by consolidating multiple machines and setups into a single, highly automated cell.
