Special lathe for long-shaft machining

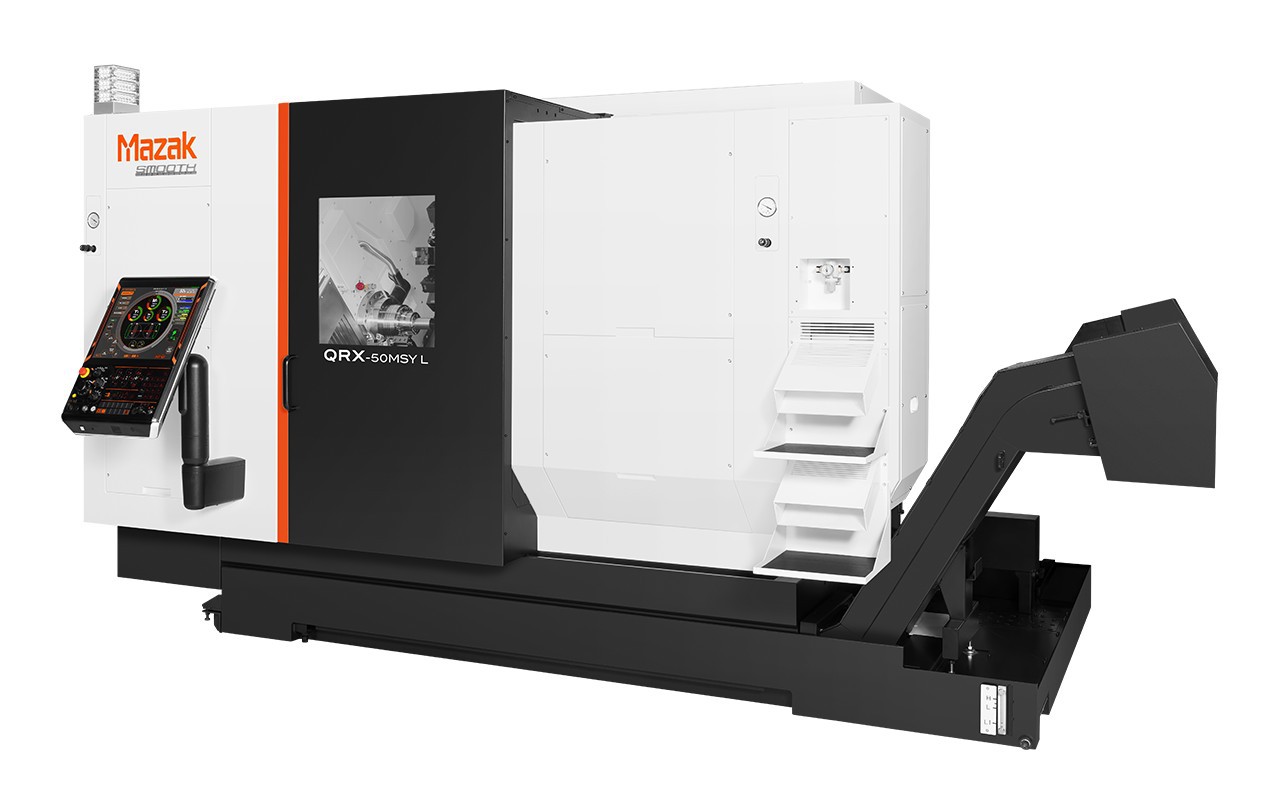

The Mazak QRX-50MSY is a highly advanced, large-capacity multi-tasking turning center from the QRX series, which represents Mazak's premium line of horizontal turn-mill centers. The nomenclature suggests: "QRX" as the series, "50" likely refers to the spindle bore size (in mm, e.g., a massive 5-inch or 130mm bar capacity), "M" for Multi-tasking, "S" often indicating the presence of a Sub-spindle, and "Y" for Y-axis capability. This machine is a true "Done-In-One" behemoth, designed for the complete machining of extremely large, complex parts from big bar stock, forgings, or castings in a single chucking, targeting the aerospace, energy, and heavy equipment sectors.

This machine transcends the category of a simple lathe. It is essentially a hybrid manufacturing cell. It features an enormous main spindle with a huge through-hole capable of passing very large diameter bar stock or accommodating large chucked workpieces. Opposite sits an equally powerful sub-spindle. The tooling system is incredibly robust, often featuring two independent turrets: one for the main spindle and one for the sub-spindle. These turrets are equipped with powerful driven tools (live tooling) and possess full Y-axis motion.

The capabilities are staggering. It can perform heavy-duty turning on one end while simultaneously milling complex features on the other end using the sub-spindle turret. With Y-axis, it can mill off-center features, drill angled holes, and machine complex 3D contours on the part's faces or diameters. The part can be passed between spindles for complete backside machining. All this happens under the control of a single, powerful MAZATROL SmoothX CNC that seamlessly synchronizes all axes and spindles.

The machine is built on an ultra-rigid, large slant-bed structure to absorb the tremendous forces generated. It is designed for high levels of automation, with integrated gantry loaders or robotic interfaces for handling large, heavy raw materials and finished parts.

In summary, the Mazak QRX-50MSY is at the apex of multi-tasking turning technology. It is designed for the most challenging large-part applications where consolidating an entire manufacturing process-turning, milling, drilling, tapping-into one machine cycle is not just an advantage, but a necessity for economic and precision reasons. It maximizes productivity and minimizes handling for the world's largest and most complex rotational components.
