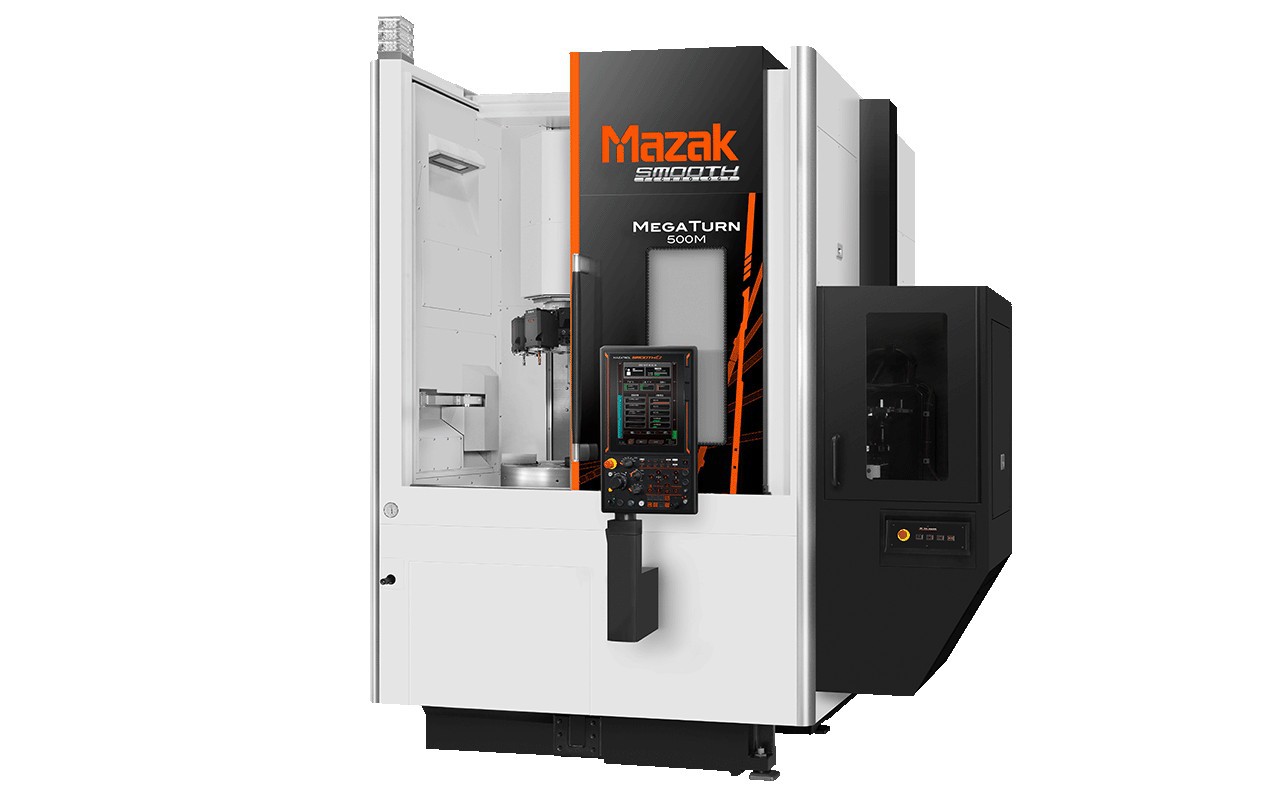

Heavy-Duty Turning Center
The Mazak MEGA TURN series represents the absolute zenith of Mazak's machining portfolio, comprising gigantic Vertical Turning Lathes (VTLs) and Vertical Machining Centers (VMCs) designed for the world's largest and heaviest workpieces. As the name unequivocally states, these are "mega" machines, engineered for components where dimensions are measured in meters, weights in tens or hundreds of tons, and tolerances are critical despite the massive scale. They are indispensable in sectors such as renewable energy (wind turbine hubs and bearings), power generation (hydroelectric turbine components, generator rings), marine (large propeller hubs), mining, and heavy engineering (press frames, large dies).

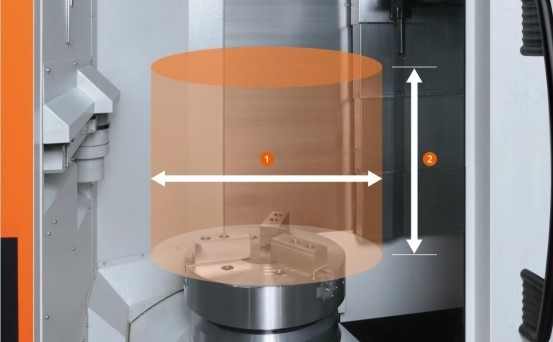

The core architecture of a MEGA TURN VTL features a vertically oriented, rotating worktable (the chuck or faceplate) upon which the colossal workpiece is mounted. The cutting tools are mounted on a cross rail that moves vertically (Y-axis) and on tool rams or side heads that move horizontally (X-axis). This vertical configuration is ideal for very large, flat, or short cylindrical parts because gravity works to secure the workpiece firmly to the table, and chip fall-away is excellent. The tables are enormous, capable of holding and rotating incredibly heavy loads with high precision thanks to hydrodynamic or hydrostatic bearing systems.
Rigidity is beyond paramount; it is the defining characteristic. The entire machine structure-base, column, cross rail-is constructed from massive, stress-relieved cast iron or fabricated steel sections, designed to resist deflection under the enormous cutting forces required to machine hard steel or large castings. The main drive motors are tremendously powerful, providing the torque needed to rotate multi-ton workpieces and drive large-diameter cutting tools.

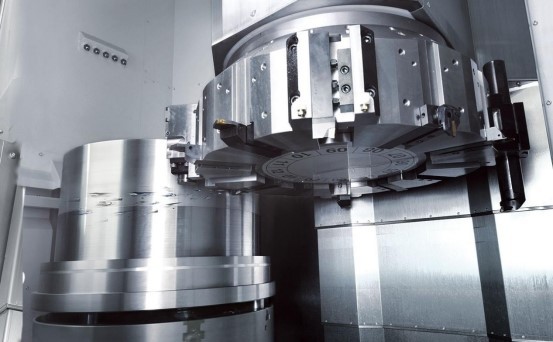

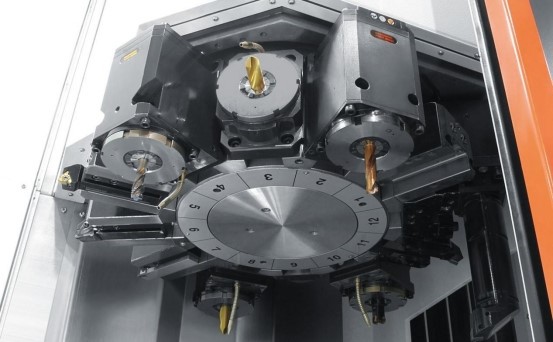

MEGA TURN machines are inherently multi-tasking. A standard configuration includes multiple tool posts: typically a right-hand and left-hand ram on the cross rail, and often independent side heads. These can operate simultaneously on different areas of the part, drastically reducing cycle time. Driven tooling (live milling spindles) can be integrated into these rams, allowing for complete turn-mill operations. This means a wind turbine bearing seat can be turned, faced, bored, and have its bolt holes milled-all in a single setup on one machine.
Control is managed by a powerful, often dual-screen, MAZATROL CNC system capable of handling the complex kinematics of multiple, simultaneously operating tool posts and live spindles. Programming support for large-part machining and tool management is critical.
Due to the scale, these machines are often part of a custom-engineered cell. Part loading is performed by giant overhead cranes, and the machine pit and foundation are significant civil engineering projects. Integration with in-process gauging and tool setting systems is common to ensure accuracy over days-long machining cycles.
In conclusion, the Mazak MEGA TURN is more than a machine tool; it is a landmark piece of industrial capital equipment. It enables the manufacture of the foundational components of modern infrastructure. By combining unrivaled size, heroic rigidity, and sophisticated multi-tasking capabilities, it allows manufacturers to complete massive components with a level of accuracy and efficiency that would be impossible through multiple setups or on less capable equipment.
