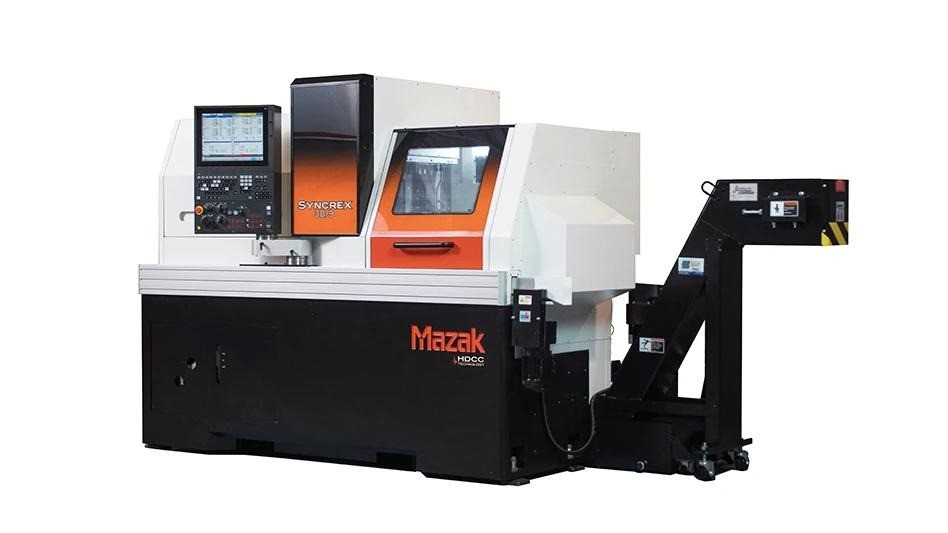

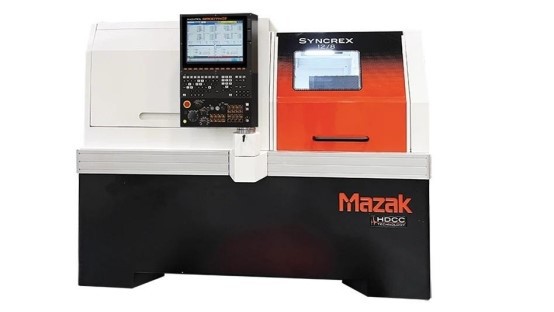

High-speed precision Swiss-type lathe

The Mazak SYNCREX series represents the pinnacle of precision, high-speed, and complex machining for small-diameter, slender parts, belonging to the category of Swiss-type automatic lathes (also known as sliding headstock lathes). This series is engineered for the mass production of intricate, long, and tiny components with diameters typically ranging from 0.5mm to 32mm, serving mission-critical industries such as medical devices (surgical tools, implants, bone screws), electronics (connectors, pins, contacts), automotive (fuel injection parts, sensors), and watchmaking. The "SYNCREX" name itself hints at its synchronized, precise, and complex ("sync" and "rex" implying kingly precision) machining capabilities.

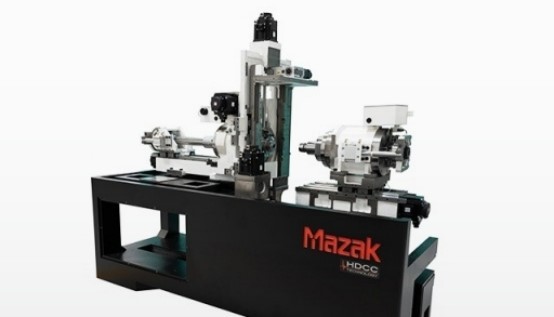

This machine transcends the category of a simple lathe. It is essentially a hybrid manufacturing cell. It features an enormous main spindle with a huge through-hole capable of passing very large diameter bar stock or accommodating large chucked workpieces. Opposite sits an equally powerful sub-spindle. The tooling system is incredibly robust, often featuring two independent turrets: one for the main spindle and one for the sub-spindle. These turrets are equipped with powerful driven tools (live tooling) and possess full Y-axis motion.

The fundamental design principle of a SYNCREX machine diverges from a conventional lathe. Instead of the tool moving along a stationary workpiece, the bar stock is fed through a precision guide bushing and rotates while the tooling stations remain fixed in position (though they can move radially and axially). The guide bushing provides rigid support to the bar material directly adjacent to the cutting point. This architecture is the key to its success: it virtually eliminates deflection of the slender workpiece during machining, enabling exceptional length-to-diameter ratios, superb surface finishes, and micron-level tolerances that are unattainable with standard lathes.

A standard SYNCREX machine is a marvel of multi-tasking integration. It features a main spindle (headstock) that feeds and rotates the bar, a counter spindle (pick-off spindle) to receive and work on the back end of the part, and a multitude of independently controlled tool stations arranged around the workpiece. These stations include driven tooling (live tools) for milling flats, slots, cross-holes, and complex contours. Advanced models feature multiple guide bushings, Y-axis movement on tool posts for off-center milling, and even secondary attachments for further operations like laser marking or part inspection. This allows the complete machining of a part-front, back, and all peripheral features-in a single, continuous cycle without human intervention until the bar is exhausted.

Control and synchronization are managed by Mazak's specialized CNC system, often a variant of MAZATROL optimized for Swiss-type programming. It precisely coordinates the synchronized movements of the main spindle, counter spindle, multiple tool slides, and bar feeder. The programming system simplifies the creation of complex tool paths for these multi-axis operations, often using conversational inputs or seamless CAM integration.

Built for relentless, lights-out production, SYNCREX machines are designed with high-speed capabilities, minimal non-cutting time, and automated material handling. They are typically integrated with bar feeders capable of holding multiple bars, ensuring hours or even days of uninterrupted operation. Chip management and coolant systems are optimized for the high-volume, small-chip nature of this work.

In summary, the Mazak SYNCREX is not merely a lathe; it is a complete, ultra-precise micro-manufacturing system. It is the definitive solution for producing vast quantities of miniature, complex, and high-value components where geometric complexity, dimensional consistency, and superior surface finish are non-negotiable. It embodies efficiency and precision at the smallest scales.
