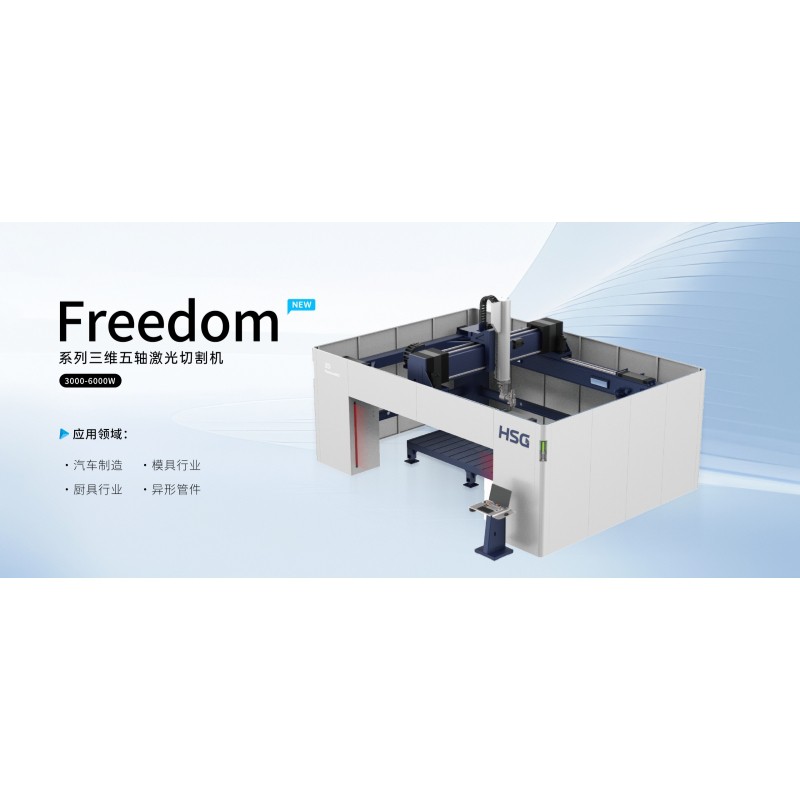

3D Laser Processing Machine
The Hexagon FREEDOM 3D Laser Processing Machine is a revolutionary system that liberates manufacturing from the constraints of two-dimensional processing, enabling the precise cutting, welding, and surface treatment of complex three-dimensional components. True to its name, "FREEDOM" offers unprecedented flexibility and accessibility in laser machining, allowing manufacturers to process pre-formed, stamped, cast, or fabricated parts with geometries that are impossible for flatbed systems to handle. This technology is pivotal for industries moving towards lightweight, integrated designs and agile production methods.

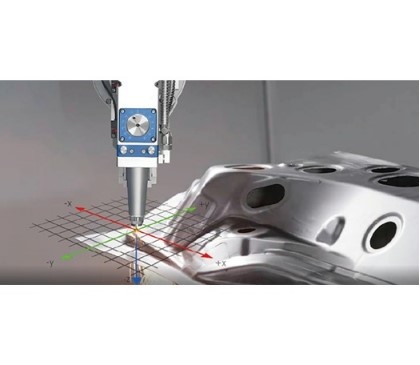

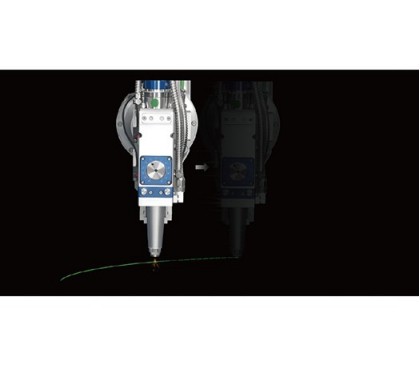

The core innovation of the FREEDOM system lies in its advanced kinematics. It typically employs a multi-axis configuration, most commonly a high-precision industrial robotic arm mounted on a linear track (creating a 7th axis) and working in concert with a programmable servo-driven rotary-tilt table. This setup provides a full 5 or more axes of synchronized motion, allowing the laser processing head to be oriented perpendicular to the workpiece surface at any point in 3D space. This is critical for maintaining optimal processing conditions-whether for cutting, welding, or drilling-on contoured surfaces, deep-drawn parts, tubes, and complex assemblies. The system's ability to follow 3D paths with high dynamic accuracy unlocks new possibilities in part design and consolidation.
Integrated with a high-brightness fiber laser, the FREEDOM cell delivers concentrated energy for precise, low-distortion processing. For trimming applications, it can cleanly cut flanges, windows, and holes in stamped automotive body parts or appliance housings. For welding, it enables deep, narrow, and high-strength seams on 3D joints, replacing slower, more distortive methods. The system is often equipped with real-time adaptive control. Through integrated vision systems or tactile probing, it can scan a part's actual position and geometry, compare it to the CAD model, and automatically adjust the robot path to compensate for part-to-part variation-a "scan-and-process" capability that is essential for dealing with the inherent tolerances of stamped metal.

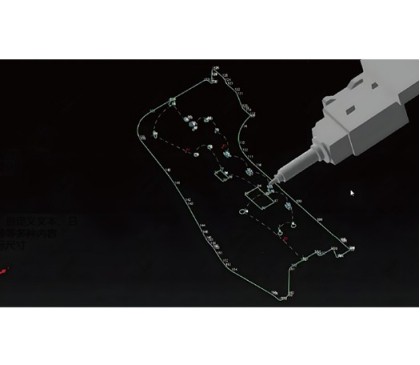

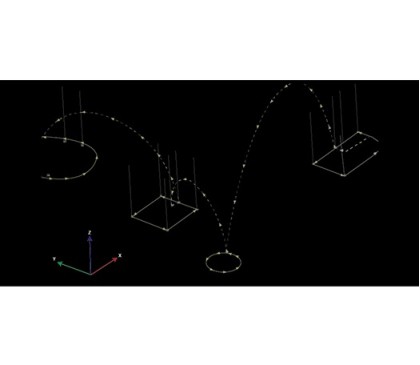

Programming efficiency is paramount for 3D work. The FREEDOM system is supported by powerful offline CAD/CAM software that allows programmers to simulate the entire process, generate collision-free robot trajectories, and optimize laser parameters within a virtual environment. This drastically reduces costly machine downtime for programming and debugging. The cell can be further enhanced with automated part loading/unloading via robots or gantry systems, creating a fully automated, flexible manufacturing unit for mid to high-volume 3D part production.
The Hexagon FREEDOM 3D Laser Processing Cell is transformative for sectors like automotive (body-in-white, chassis components), aerospace (ducting, structural elements), and premium consumer goods. It allows for the consolidation of multiple parts into single, lighter components, reduces or eliminates hard tooling, and enables rapid prototyping and low-volume production of complex designs. By providing the freedom to process in three dimensions, it empowers engineers to design for performance and manufacturability in ways previously unimaginable.
