Tube Laser Processing Machine

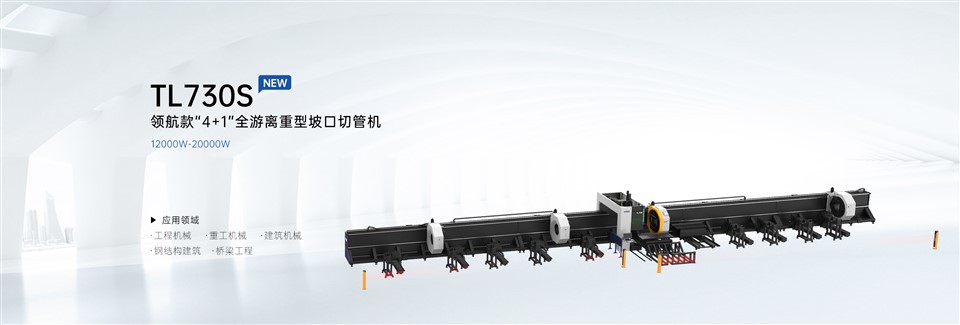

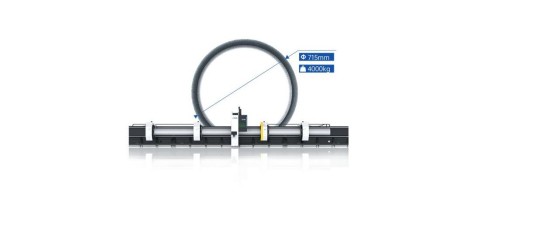

The Hexagon TL730S Tube Laser Processing Machine is a specialized, high-performance system dedicated to the precise and efficient machining of metal tubes, pipes, and profiles. It transforms raw tubular stock into finished, complex components in a single setup, eliminating multiple secondary operations like drilling, milling, and punching. The "TL" designation signifies its tube laser focus, while "730S" indicates a specific model within the series, likely featuring a large processing diameter capacity (e.g., up to 730mm or 30 inches) and enhanced "S" performance features, making it ideal for structural fabricators, furniture makers, and industries requiring high-mix tubular parts.

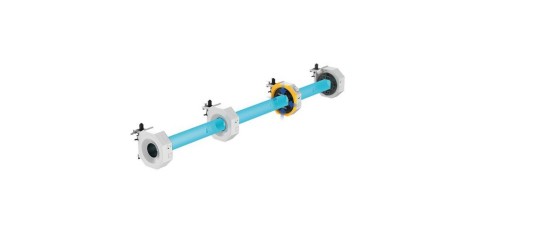

The TL730S is engineered around the unique challenge of manipulating and processing long, cylindrical workpieces. Its core mechanism involves a highly precise rotary chuck system. The tube is securely clamped at one or both ends by servo-driven chucks that provide accurate and synchronized rotation (C-axis). Meanwhile, the laser cutting head moves linearly along the length of the tube (X-axis) and can also move vertically (Z-axis) and laterally (Y-axis). This combination of linear motion and precise rotation allows the laser beam to be positioned at any point on the tube's circumference and along its length, enabling the creation of complex miters, holes, slots, contours, and cut-outs at any angle-essential for creating joints for welding or assembly.

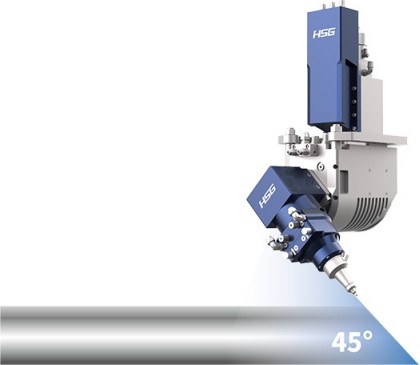

Equipped with a high-quality fiber laser, the TL730S makes clean, fast cuts on round, square, and rectangular tubes made of carbon steel, stainless steel, and aluminum. The cutting head features automatic focus control and height sensing to maintain the correct distance from the curved or changing surface. Advanced software is the brain of the operation. It imports 3D tube models, automatically unfolds them, generates efficient cutting paths that minimize cycle time and scrap, and manages the complex machine kinematics, including chuck positioning to avoid collisions. It can nest multiple different parts along a single tube length to maximize material yield.

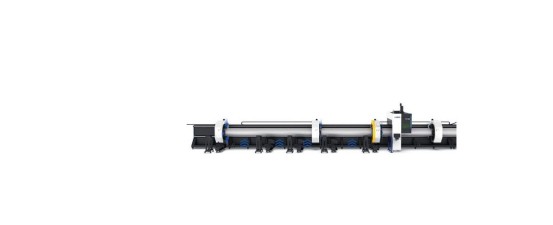

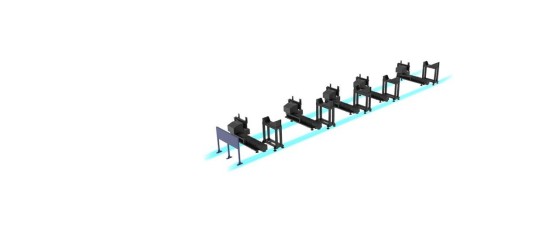

Productivity features are central to the TL730S design. It supports automatic tube loading and unloading systems, allowing for continuous processing of multiple tubes from a magazine or rack with minimal operator intervention. Integrated probing systems can measure the actual tube diameter and straightness, automatically compensating the cutting program for material variations. For processing long or heavy tubes, steady rests or support units are available to prevent sagging and vibration during cutting, ensuring accuracy over the full length.
In application, the Hexagon TL730S is indispensable for manufacturing bicycle and motorcycle frames, architectural structures (handrails, canopies), fitness equipment, agricultural machinery, and furniture. It enables the economical production of both high-volume standard parts and low-volume custom designs with short lead times. By digitizing and automating tube fabrication, it reduces labor costs, minimizes errors, and unlocks complex, lightweight designs that are both strong and aesthetically pleasing, providing fabricators with a significant competitive edge in a specialized market.
