General-purpose high-performance horizontal machining center

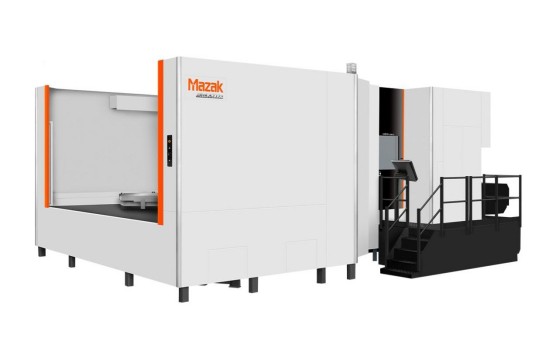

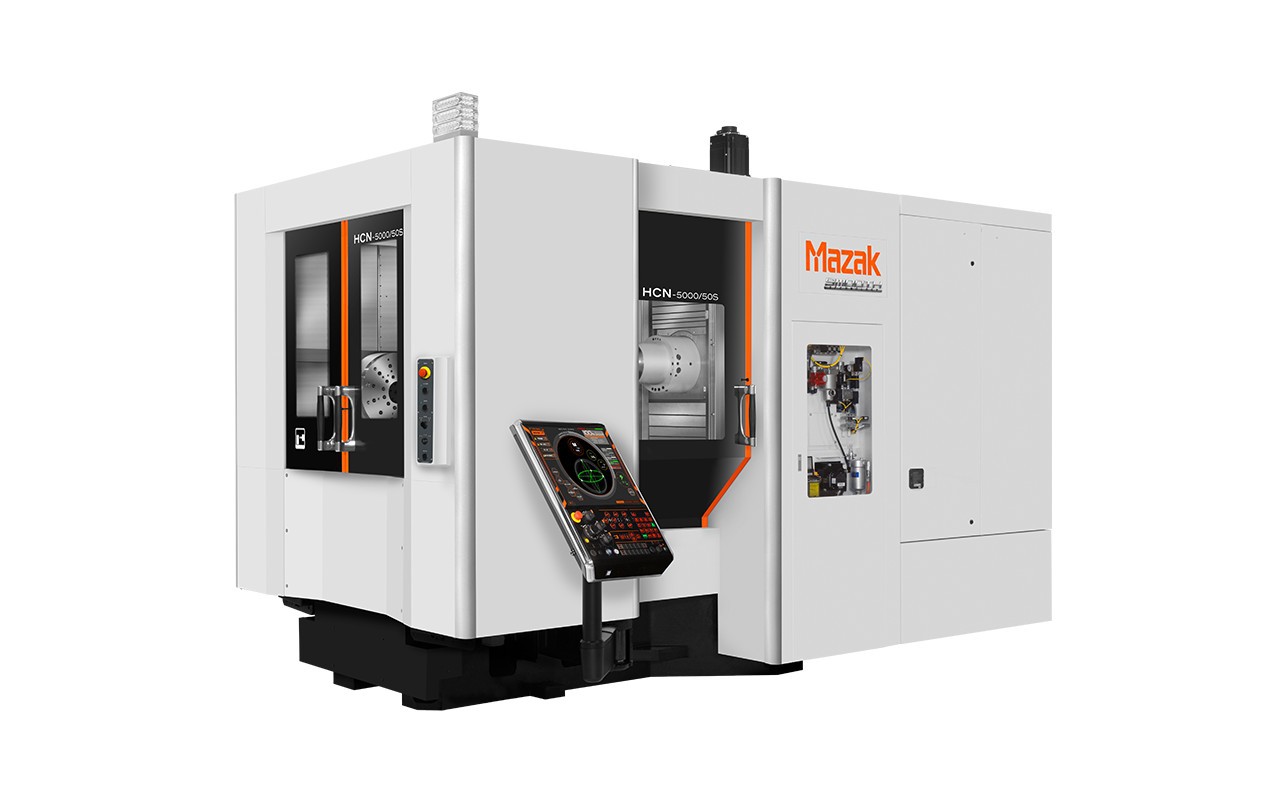

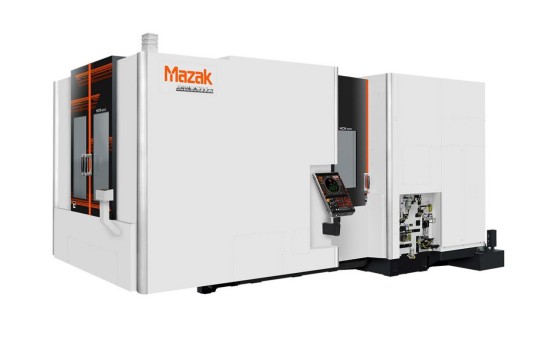

The Mazak HCN-5000 L is a large-scale, high-performance horizontal machining center (HMC) from the HCN series. The "5000" denotes a substantial model size, and the "L" likely indicates a configuration with an extended X-axis travel or a larger pallet size (e.g., 500mm x 500mm or larger). This machine is engineered for heavy-duty, high-precision production of medium to large-sized components in industries like construction equipment, agricultural machinery, aerospace, and energy, where rigidity, chip management, and unmanned operation are paramount.

As a horizontal machining center, its spindle is oriented horizontally. This design provides inherent advantages: chips fall away from the workpiece and tool due to gravity, leading to excellent chip evacuation, better surface finishes on machined faces, and reduced tool wear. The HCN-5000 L is built on an extremely rigid, one-piece cast-iron bed that absorbs cutting forces and ensures long-term accuracy. The traveling column design (where the column moves in the Y-axis) is common in larger HMCs, providing a stable platform for the spindle while allowing for a large work envelope.

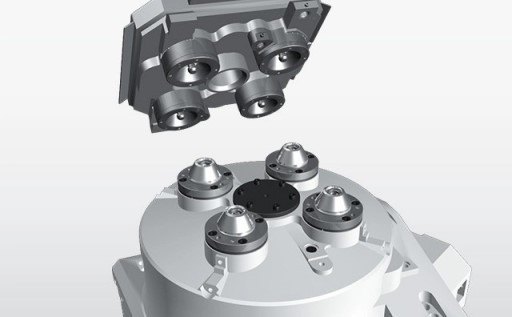

The machine is almost certainly equipped with an automatic pallet changer (APC) system, often standard on machines of this class. The twin-pallet system allows continuous production: one pallet is being machined inside the enclosed work area while the other is outside for part loading and unloading. This drastically reduces spindle idle time and is the foundation for lights-out manufacturing. The large pallet size can support heavy, complex fixtures holding multiple parts.

Power is delivered by a high-torque, high-power spindle designed for aggressive milling and drilling in tough materials. The axis drives are powerful and precise, enabling fast positioning and heavy cuts. The machine is controlled by Mazak's advanced MAZATROL CNC (e.g., SmoothX or Matrix), which includes features for optimal tool path generation, thermal compensation, and seamless integration with automation.

A key feature of the HCN series is its suitability for Flexible Manufacturing Systems (FMS). The HCN-5000 L can be easily integrated into a cell with a common pallet pool serviced by an automated guided vehicle (AGV) or rail-guided vehicle (RGV), allowing it to run a large variety of parts completely unattended.

In summary, the Mazak HCN-5000 L is a production-grade horizontal machining center built for relentless, accurate, and automated manufacturing. Its horizontal design, pallet-changing capability, heavy-duty construction, and system integration focus make it an ideal core component for high-productivity cells machining complex prismatic parts in medium to high volumes.
