horizontal spindle machining centre
The Mazak μ-8800 (Mu-8800) represents a specialized and highly advanced 5-axis machining center designed for the ultra-high-speed and ultra-high-precision machining of extremely small, complex parts. The Greek letter "μ" (mu) stands for "micro," clearly indicating its focus on the micro-machining domain. This machine is the tool of choice for industries operating at the cutting edge of miniaturization, such as medical (stents, micro-surgical tools, bone screws), optics (micro-lenses, mold inserts), electronics (connectors, micro-sensors), and aerospace (micro cooling holes, tiny turbine blade features).

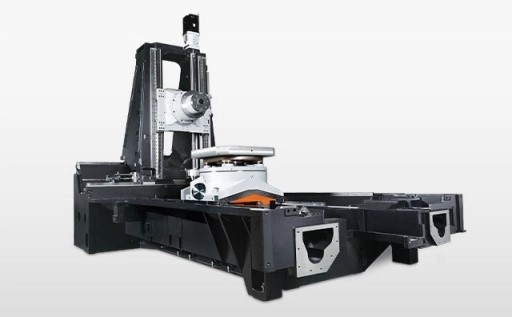

Every aspect of the μ-8800 is engineered to achieve sub-micron levels of accuracy and superlative surface finishes. It features an ultra-rigid, thermally stable double-column structure made from advanced materials with low thermal expansion. Vibration is meticulously controlled through a combination of a massive granite base, air damping systems, and a design that isolates the machining area from external disturbances.

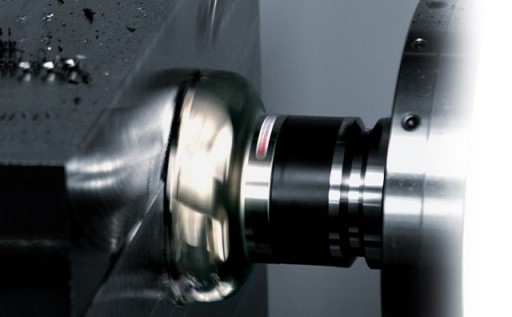

The heart of the machine is its ultra-high-speed, ultra-high-precision spindle. Spindle speeds can reach 50,000 RPM, 80,000 RPM, or even higher, with runout measured in tenths of a micron. This allows for the use of micro-tools with diameters as small as 0.01mm. The rotary axes (A and C) utilize direct-drive torque motors mounted in a trunnion-style arrangement, providing flawless, backlash-free motion with exceptional angular accuracy and surface finish on contoured shapes.
The control system is a specialized, high-performance CNC capable of processing vast amounts of data for complex micro-tool paths. It features nano-level interpolation, extremely high block processing speeds, and sophisticated algorithms for smooth motion control to prevent tool marks at the microscopic scale. Non-contact tool setting and workpiece probing systems are integrated to handle tools and parts too small for conventional touch probes.
The environment is also controlled. The machine often operates within a fully enclosed, temperature-stabilized chamber to eliminate the effects of ambient temperature fluctuations. High-pressure micro-droplet coolant or air blast systems are used for precise chip evacuation without deflecting the tiny tools.
In essence, the Mazak μ-8800 is a pinnacle of micro-manufacturing technology. It is not a general-purpose machine but a highly specialized instrument for producing components that push the limits of size, complexity, and precision. For companies leading innovation in micro-technology, the μ-8800 is an essential capital investment that enables the production of parts that are often impossible to make any other way.
