The Mazak VARIAXIS j-300 is the smallest model in the compact 5-axis VARIAXIS j series, offering full 5-axis simultaneous machining capability in an extremely space-efficient package. Designed for ultra-high-precision work on small, intricate components, it is the go-to machine for industries like medical device manufacturing, micro-machining, optics, watchmaking, and advanced electronics, where part sizes are minute and tolerances are exceptionally tight.

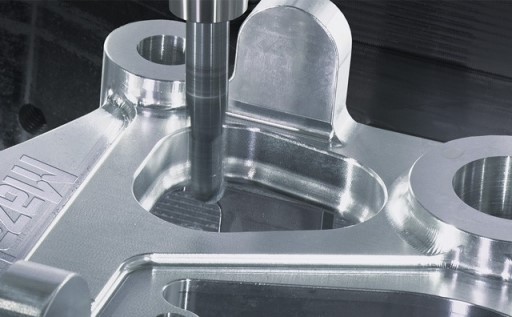

True to the VARIAXIS j design, the j-300 features a rigid, thermally symmetric double-column (gantry) structure, but scaled down to match its smaller work envelope. The workpiece is held on a high-precision, direct-drive tilting rotary table (providing A and C axes), while the spindle remains fixed. This configuration provides exceptional stability and accuracy for 5-axis contouring of tiny, complex geometries such as surgical implant prototypes, miniature connectors, micro-fluidic devices, and intricate jewelry or mold components.
Precision is paramount on this machine. All mechanical components are selected and built to micron-level standards. The rotary axes utilize direct-drive motors (often torque motors) that eliminate backlash and provide extremely smooth, responsive motion for flawless surface finishes on sculpted forms. The linear axes employ high-precision ballscrews, linear scales (often as standard or optional), and advanced thermal compensation to maintain geometric accuracy over long machining cycles and varying ambient conditions.
The spindle is a critical component. The j-300 is typically equipped with a very high-speed, high-precision spindle, often capable of 30,000 RPM, 40,000 RPM, or even higher. This allows for the use of extremely small-diameter cutting tools (down to tenths of a millimeter) necessary for micro-features. The spindle runout is minimized, and dynamic balance is perfected to ensure stability at these extreme speeds. Through-spindle coolant (TSC) at high pressure is often standard to ensure effective chip evacuation from deep, tiny cavities.

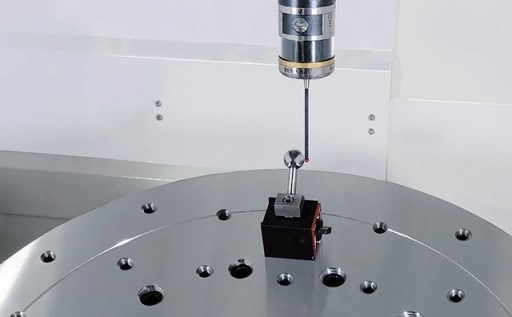

Control is provided by Mazak's high-performance MAZATROL SmoothX CNC, which offers specialized functions for micro-machining and 5-axis work. Features like nano-level interpolation, precise TCP control, and advanced look-ahead are essential for the complex, high-feed-rate tool paths used in micro-machining. The machine may also support non-contact tool setting and broken tool detection to protect delicate tools and expensive workpieces.
In summary, the Mazak VARIAXIS j-300 is a masterpiece of precision engineering. It takes the full 5-axis capability of the VARIAXIS family and focuses it on the world of micro-manufacturing. It is an indispensable tool for any operation requiring the absolute highest levels of accuracy, surface finish, and geometric complexity on the smalle
